HGLRC Zeus25 AIO 3-6S
Verkauf beendet
€ 76,80

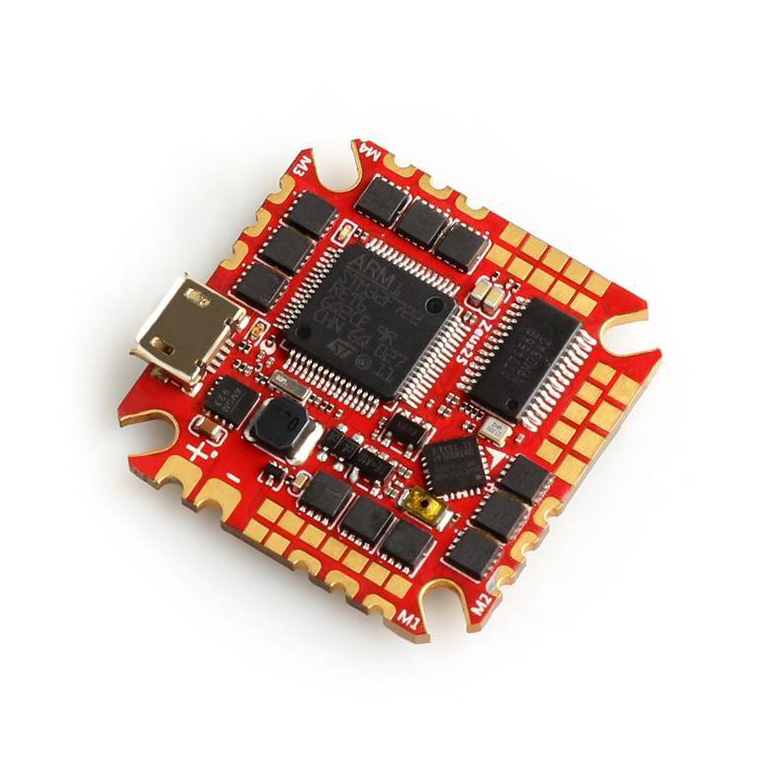

HGLRC Zeus25 AIO is a control unit with ESC in one designed for light quads and toothpicks. The basis of the control unit is a modern F7 processor with a proven MPU6000. The 25A controller uses the BlHeli_32 firmware and thus supports all new functions. The board handles 3-6S batteries and has 10V BEC for DJI FPV and 5V BEC for camera, RC receiver and other components.
You will find the wiring diagram here.
Hauptmerkmale
- Mounting holes: 25.5x25.5mm M2
- Input voltage: 3-6S
- CPU: STM32F722
- IMU: MPU6000
- BF Target: ZEUSF722_AIO (HGLR)
- ESC Firmware: BlHeli_32
- BEC: 10V @ 1A and 5V @ 2A
- Blackbox: No.
- Current carrying capacity: 25A
- Recommended engine size: 1103-1606
- Size: 32.5x32.5mm
- Weight: 8.2g
Inhalt
- 1x Board
- 1x Accessory set
