HGLRC FD413 stack 16x16 (F4+13A)
Verkauf beendet
€ 47,90

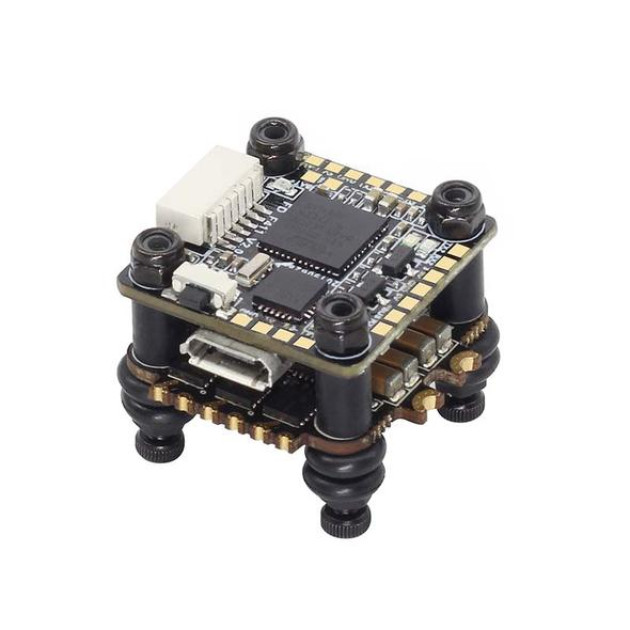

HGLRC FD413 is a stack of F4 control unit and 13A 4in1 controller with 16x16 mm mounting pitch. 16x16mm stacks are for the smallest copters. HGLRC has the connection of individual boards by means of a cable with a connector, which increases its mechanical resistance compared to pins.
Wiring scheme here.
Hauptmerkmale
FD411 control unit:
- MPU: MPU6000-SPI
- CPU: STM32F411CEU6
- Black Box: No.
- Input voltage: 3-6S
- BEC output: 5V @ 2A
- Size: 21x21mm
- Mounting holes: 16x16mm, M2
- Weight: 2.7 g
- Target: HGLRCF411
ESC FD13A 4in1ESC:
- Input voltage: 3-6S Lipo
- Max continuous current: 13A
- Max short-time current: 15A （5S）
- BEC Ouput: NO
- External dimensions: 23x24mm
- Mounting holes: 16x16mm, M2
- Weight: 3.2 g
- CPU: SILABS EFM8BB2 48MHZ
Inhalt
- 1x FD411 Flight Controller
- 1x FD13A BLS 4in1 ESC
